HTML5 video and audio element

You can use the HTML5 audio and video elements to play multimedia files streaming, without a separate plug-in.

Using JavaScript, the playback can be controlled with media events. The audio and video elements used as media elements inherit all the properties and methods of the HTMLMediaElement interface (in mobile, wearable, and TV applications).

The main features of the audio and video elements with JavaScript include the following:

Creating a player

You can create a simple audio and video player.
Controlling the playback

You can use the Play() and Pause() methods of the Media object (in mobile, wearable, and TV applications){:target="_blank"} to control playing and pausing media files. With media events, additional features can be used.
Retrieving duration and play time

You can retrieve the duration and play time of the media file, if its metadata (such as playing time, duration, and video’s width and height) is loaded.
Playing from a random position

You can indicate the playback time by playing the media file from a random position. To do this, you must change the currentTime value of the Media object to trigger the timeupdate event (in mobile, wearable, and TV applications).
Retrieving progress state

You can retrieve and display the download progress state using the Progress media event, which is triggered when information related to the progress of a media object loading media contents is updated.
Resizing the video screen

You can resize the video screen to offer different viewing options for the user.
Checking supported media formats

You can check whether the media data can be played using the canPlayType() method. Basically, the MIME type must be set in the Web server in a format that is supported in Tizen. If a non-supported MIME type is used, you can handle exceptions in advance.

Create an audio and video player

To provide users with HTML5 audio and video features, you must learn to create a simple player for streaming playback:

To create an audio player, create an audio element including the necessary attributes:

<audio id="audio" src="media/audio_sample.mp3"
       preload="auto" controls muted loop autoplay>
</audio>

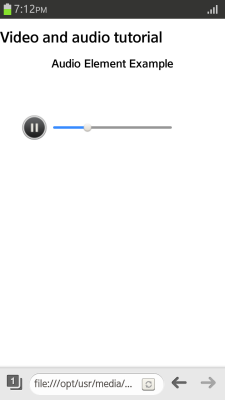

Audio player

To create a video player, create a video element including the necessary attributes. In addition to the attributes available for the audio element, you can also use the width, height, and poster attributes:
```
<video id="video" src="media/video_sample.mp4"
       width="400" height="220" poster="media/poster_sample.png"
       preload="auto" controls muted loop>
</video>
```

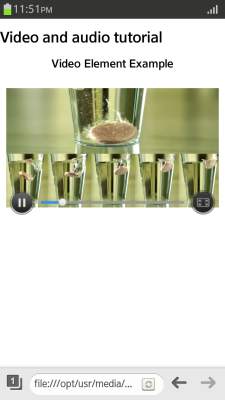

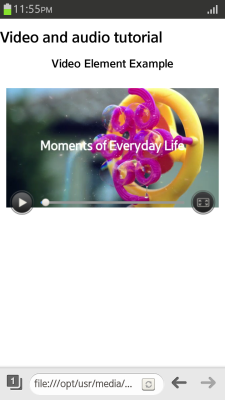

A player with a play control (built-in control provided in the browser) is created. The control is visible only when the controls attribute is added. If the poster attribute is not defined, the video’s first frame is shown on the screen before the playback. The following figure shows the video player before and during playback.

Note
The preload attribute is set to auto by default, meaning that the media metadata is automatically loaded. If you do not want to load the metadata, set the attribute value as metadata or none.

Note
Carefully consider before using the autoplay feature (in mobile, wearable, and TV applications), which plays content automatically in the mobile environment without user interaction. The user can face unintended Internet packet fees or interfering factors, such as playback being stopped unintentionally.

Source code

For the complete source code related to this use case, see the following files:

Play media files

To provide users with HTML5 audio and video features, you must learn to play and pause media files using custom controls:

Create the video element and buttons used to control the play and pause:

<div class="media">
   <video id="video" src="media/video_sample.mp4"></video>
   <div>
      <button id="v-play" type="button">play</button>
      <button id="v-pause" type="button" disabled >pause</button>
   </div>
</div>

The Pause button is disabled until the play event occurs.

Define the button functions. Play and pause the media file using the play() and pause() methods of the HTMLMediaElement interface (in mobile, wearable, and TV applications):

<script>
    var play_button = document.getElementById('v-play');
    var pause_button = document.getElementById('v-pause');

    play_button.addEventListener('click', function() {
        video.play(); /* Play movie */
    }, false);

    pause_button.addEventListener('click', function() {
        video.pause(); /* Pause movie */
    }, false);

Apply event listeners to detect button events an react to them:

    var video = document.getElementById('video');

    video.addEventListener('play', function() {
        play_button.disabled = true; /* Play button disabled */
        pause_button.disabled = false; /* Pause button enabled */
    }, false);

    video.addEventListener('pause', function() {
        play_button.disabled = false; /* Play button enabled */
        pause_button.disabled = true; /* Pause button disabled */
    }, false);

    video.addEventListener('ended', function() {
        play_button.disabled = false; /* Play button enabled */
        pause_button.disabled = true; /* Pause button disabled */
    }, false);
</script>

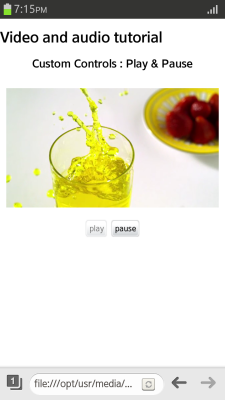

Figure: Playing files (in mobile applications only)

Playing files (in mobile applications only)

Source code

For the complete source code related to this use case, see the following files:

Retrieve media information

To provide users with HTML5 audio and video features, you must learn to retrieve the total duration and playing time of a media file:

Note
The media file metadata can only be retrieved, if it is loaded in the application. The preload attribute is must be set to auto, or the autoplay attribute be set as true.

Create the video element and the elements to display the total duration and playing time of the file:

<div class="media">
   <h1>Play Time Example</h1>
   <video id="video" src="media/video_sample.mp4" controls preload="auto"></video>
   <div class="log">Current Play Time: <span id="currentTime"></span></div>
   <div class="log">Total Play Time: <span id="totalTime"></span></div>
</div>

Apply the loadedmetadata media event to the video object to get the total duration of the file:

<script>
    var video = document.getElementById('video');
    var currentTime = document.getElementById('currentTime');
    var totalTime = document.getElementById('totalTime');

    /* Indicate the total duration */
    video.addEventListener('loadedmetadata', function() {
        /* Total video duration */
        var totalSec = video.duration;

        /* Import method to change seconds to time (HH:MM:SS) format */
        var time = secondsToTime(totalSec);

        /* Display the calculated time on screen */
        totalTime.innerHTML = parseInt(totalSec) + 'sec (' + time.h +
                              ':' + time.m + ':' + time.s + ')';
    }, false);

Apply the timeupdate media event to the video object to get the playing time:

    /* Indicate play time status */
    video.addEventListener('timeupdate', function() {
        /* Current play time */
        var currSec = video.currentTime;
        var c_time = secondsToTime(currSec);

        /* Display the current play time */
        currentTime.innerHTML = parseInt(currSec) + 'sec (' + c_time.h +
                                ':' + c_time.m + ':' + c_time.s + ')';
    }, false);
</script>

To manage the data more efficiently, convert the time units to JSON parser objects:

<script>
    /* Change seconds to time (HH:MM:SS) format */
    function secondsToTime(secs) {
        var hours = Math.floor(secs / (60 * 60));

        var divisor_for_minutes = secs % (60 * 60);
        var minutes = Math.floor(divisor_for_minutes / 60);

        var divisor_for_seconds = divisor_for_minutes % 60;
        var seconds = Math.ceil(divisor_for_seconds);

        /* Set as JSON object */
        var obj = {
            'h': intToString(hours),
            'm': intToString(minutes),
            's': intToString(seconds)
        };

        return obj;
    }

    /* Ensure that each time is set in 2 characters according to the time format */
    function intToString(time) {
        return (parseInt(time) < 10 ? ('0' + time) : time);
    }
</script>

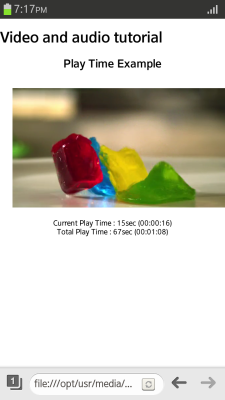

Figure: Displaying the duration and play time (in mobile applications only)

Displaying the duration and play time (in mobile applications only)

Source code

For the complete source code related to this use case, see the following files:

Move the timeline position

To provide users with HTML5 audio and video features, you must learn to move the play position on the timeline:

Create the video element and buttons used to control the timeline:

<div class="media">
   <video id="video" src="media/video_sample.mp4" controls ></video>
   <div>
      <button id="v-back">5 Sec Backward</button>
      <button id="v-forw">5 Sec Forward</button>
   </div>
   <div><button id="v-goto">Go to 40 Sec</button></div>
</div>

Add event listeners to change the currentTime value when a click event occurs in the button elements:

<script>
    var video = document.getElementById('video'); /* Video object */
    var back_button = document.getElementById('v-back'); /* Back button */
    var forw_button = document.getElementById('v-forw'); /* Forward button */
    var go_button = document.getElementById('v-goto'); /* Jump button */

    /* Move 5 seconds back */
    back_button.addEventListener('click', function() {
        video.currentTime -= 5;
    }, false);

    /* Move 5 seconds forward */
    forw_button.addEventListener('click', function() {
        video.currentTime += 5;
    }, false);

    /* Move timeline to 40 seconds */
    go_button.addEventListener('click', function() {
        video.currentTime = 40;
    }, false);
</script>

If the metadata of the media file is loaded, you can move to the assigned timeline position even when the media file is not playing. For more information, see Retrieving Media Information.

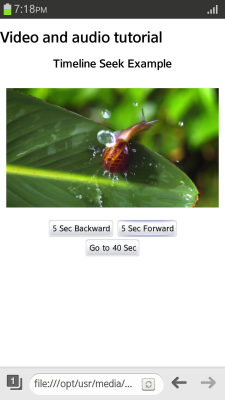

Figure: Moving the timeline position (in mobile applications only)

Moving the timeline position (in mobile applications only)

Source code

For the complete source code related to this use case, see the following files:

Display the progress state

To provide users with HTML5 audio and video features, you must learn to check the download progress status of media content:

Create the video element and the elements to display the download progress status of the media file:

<div class="media">
   <video id="video" src="media/video_sample.mp4" controls poster="media/poster_sample.png"></video>
   <div>Progress: <span id="state"></span></div>
</div>

While the download is in progress, the poster1.png image is shown.

The buffered attribute of the video object returns a TimeRanges object that represents the downloaded buffering range. Use the end property of the TimeRanges object to find out the end time (in seconds) of the buffered range:

<script>
    var video = document.getElementById('video');

    /* Progress event */
    video.addEventListener('progress', function() {
        /* Returns a TimeRanges object */
        var buffered = video.buffered;

        /* Returns time in seconds */
        var buffered_end = buffered.end();

Use the progress media event to convert the end time to percent form, and display the progress state:

        /* Change to progress rate percent */
        var progress = (buffered_end / video.duration) * 100;

        /* Display the progress state */
        document.getElementById('state').innerHTML = parseInt(progress) + '%';
    }, false);
</script>

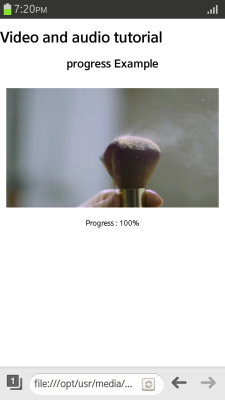

Figure: Displaying the progress state (in mobile applications only)

Displaying progress state (in mobile applications only)

Source code

For the complete source code related to this use case, see the following files:

Resize the video screen

To provide users with HTML5 audio and video features, you must learn to resize the video screen:

Note
If the screen size is reduced, the basic play control can be wrongly positioned. Therefore, do not use the controls attribute when providing the resizing custom control.

Create the video element and buttons used to control the screen size:

<video id="video" src="media/video_sample.mp4" controls ></video>
<div>
   <button id="size_big">600 * 410</button>
   <button id="size_middle">320 * 220</button>
   <button id="size_small">150 * 150</button>
</div>

Add event listeners to change the width and height values when a click event occurs in the button elements:

<script>
    var video = document.getElementById('video');

    /* Resize to big size */
    document.getElementById('size_big').addEventListener('click', function() {
        video.width = 600;
        video.height = 410;
    }, false);

    /* Resize to middle size */
    document.getElementById('size_middle').addEventListener('click', function() {
        video.width = 320;
        video.height = 220;
    }, false);

    /* Resize to small size */
    document.getElementById('size_small').addEventListener('click', function() {
        video.width = 150;
        video.height = 150;
    }, false);
</script>

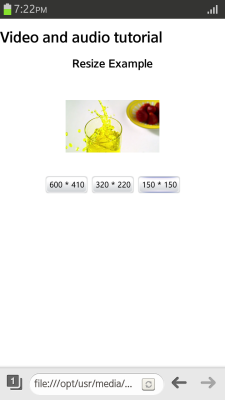

Figure: Resizing the video screen (in mobile applications only)

Resizing the video screen (in mobile applications only)

Source code

For the complete source code related to this use case, see the following files:

Check supported media formats

Tizen supports the following media formats:

Video: 3GP, AVI, ASF, OGV, MP4, MKV, WMV
Audio: AAC, AMR, MP3, OGG, WAV, WMA

To provide users with HTML5 audio and video features, you must learn to check whether the media data of the assigned MIME type can be played:

Create the video element and determine the media files you want to check:

<div class="media">
   <video id="video1" src="media/video_sample_001.ogv" controls ></video>
   <div class="log">video/ogg can play type: <span id="vlog1"></span></div>
</div>

<div class="media">
   <video id="video2" src="media/video_sample_002.webm" controls ></video>
   <div class="log">audio/acc can play type: <span id="vlog2"></span></div>
</div>

Use the canPlayType() method (in mobile, wearable, and TV applications) to check, whether the selected media files have an acceptable MIME type, and can be played:

<script>
    var video1 = document.getElementById('video1');
    var video2 = document.getElementById('video2');
    var videoElem03 = document.getElementById('video3');

    /* Check the ogg format */
    document.getElementById('vlog1').innerHTML = video1.canPlayType('video/ogg');

    /* Check the webm format */
    document.getElementById('vlog2').innerHTML = video2.canPlayType('audio/acc');
</script>

Source Code

For the complete source code related to this use case, see the following files:

Handle errors

To provide users with HTML5 audio and video features, you must learn to handle errors that can occur during playback:

Create the video and button elements, which can induce errors:

<div class="media">
   <video id="video" src="media/video_sample.mp4" controls ></video>
   <div>
      <button id="btn01">src Null</button>
   </div>
</div>

Add an event listener to detect errors and trigger error messages:

<script>
    var video = document.getElementById('video');

    /* Button event: induce error */
    document.getElementById('btn01').addEventListener('click', function() {
        video.src = ''; /* Set value as null value */
    }, false);

    video.addEventListener('error', function() {
        /* Video playback failed: show a message saying why */
        switch (video.error.code) {
            case 1:
                alert('MEDIA_ERR_ABORTED = 1 Media data download is stopped by the user');
                break;
            case 2:
                alert('MEDIA_ERR_NETWORK = 2 Download is stopped due to network error ');
                break;
            case 3:
                alert('MEDIA_ERR_DECODE = 3 Media data decoding failure ');
                break;
            case 4:
                alert('MEDIA_ERR_SRC_NOT_SUPPORTED = 4 Format not supported');
                break
        }
    }, false);
</script>

Source code

For the complete source code related to this use case, see the following files:

Supported codecs

The following tables list the codecs supported in Tizen.

Table: Supported codecs

Type	Codec	Encoder	Decoder
Video	MPEG-1	No	Yes
Video	MPEG-4 part 2	Yes	Yes
Video	MPEG-4 part 2 MS v1	No	Yes
Video	MPEG-4 part 2 MS v2	Yes	Yes
Video	MPEG-4 part 2 MS v3	Yes	Yes
Video	H.264, H.263-1996, H.263+, H263-1998, H263 v2	Yes	Yes
Video	H.264, MPEG-4 AVC, MPEG-4 part10	No	Yes
Video	WMV3	No	Yes
Video	VC1	No	Yes
Video	THEORA	Yes	Yes
Audio	AAC	No	Yes
Audio	MP3	No	Yes
Audio	WMA (Available up to WMA8. WMA9 is not available.)	No	Yes
Audio	AMR-NB	Yes	Yes
Audio	AMR-WB	No	Yes
Audio	VORBIS	Yes	Yes

Dependencies
- Tizen 2.4 and Higher for Mobile
- Tizen 2.3.1 and Higher for Wearable
- Tizen 3.0 and Higher for TV
API References
- W3C

HTML5 video and audio element

Create an audio and video player

Source code

Play media files

Source code

Retrieve media information

Source code

Move the timeline position

Source code

Display the progress state

Source code

Resize the video screen

Source code

Check supported media formats

Source Code

Handle errors

Source code

Supported codecs

Related information
